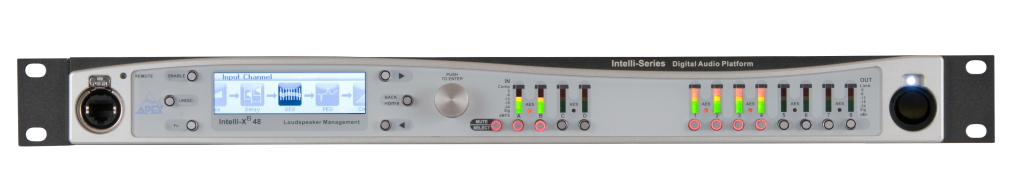

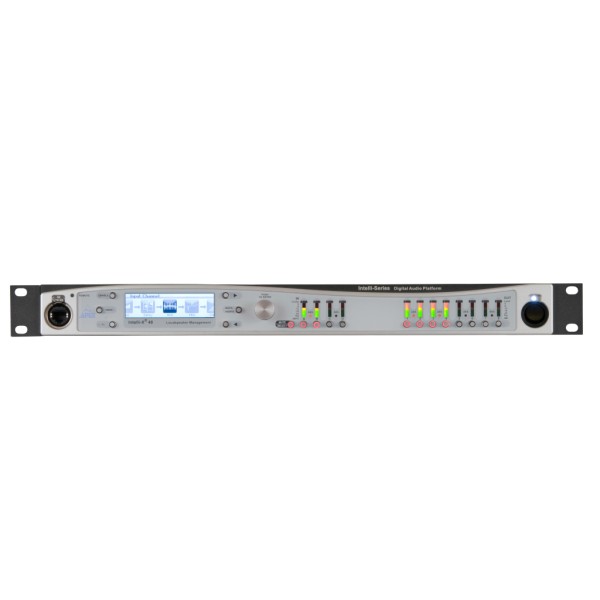

APEX – Intelli-X² 48

Beschrijving

De Intelli serie is de nieuwe standaard in luidspreker management processing. Of het nu is voor standalone systemen of voor complexe toepassingen bij grote evenementen of stadion concerten de Intelli serie zorgt voor de nodige oplossingen. Met de bijbehorende software is het mogelijk om praktisch alle configuraties te maken.

Specificaties:

Balanced line level inputs

• Connectors: 3-pin XLR (software switch-able between analog and AES-3)

• Type: electronically balanced

• Impedance: >10k ohms, balanced

• Common mode rejection: >90dB

• Max input level: 18, 21, 24 or 27 dBu software selectable, balanced, 1% THD+N

• Frequency response: 20 Hz – 20 kHz, ±0.5 dB

• THD+N: less than 0,005%, +4 dBu, 20Hz- 20 kHz, 22 kHz BW

• Dynamic range: 120 dB, 20 Hz to 20kHz, un-weighted at +21dBu headroom settings

• Crosstalk: >90 dB

• AD conversion: 24-bit, sigma-delta

Balanced line level outputs

• Connector: 3-pin XLR (software switch-able between analog and AES-3)

• Type: electronically balanced

• Impedance: <50 ohms, balanced

• Max output level: 15, 18, 21, 24 dBu software selectable, into 600 ohms, balanced, 1%

• THD+N

• Frequency response: 20 Hz – 20 kHz, ±0.5 dB

• THD+N: less than 0,005%, +4 dBu, 20Hz- 20 kHz, 22 kHz BW

• Dynamic range: 120 dB, 20 Hz to 20kHz, un-weighted at +21dBu headroom settings

• Crosstalk: >90 dB

• DA conversion resolution: 24-bit

AES-3 inputs

• Connector: 3-pin XLR (software switch-able between analog and AES-3)

• Type: transformer isolated

• Impedance: 110 ohms or 75 ohms selectable (internal jumper), balanced

• Supported formats: AES-3 and SPDIF up to 24-bit

• Supported sample rates: 32 to 192 kHz

AES-3 outputs

• Connector: 3-pin XLR (software switch-able between analog and AES-3)

• Type: transformer isolated

• Impedance: 110 ohms or 75 ohms selectable (internal jumper), balanced

Word-clock input

• Connector: BNC

• Termination: 75 ohms switch-able

• Input level: 1 to 10 Vpp

Word clock output

• Connector: BNC

• Impedance: 75 ohms

• Output level: TTL 5 Vpp

Digital processing

• Sample rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz or 192kHz selectable

• Internal processing: 32-bit floating point

• Input / output channel: Intelli-X² 26: 2 in x 6 out

• Intelli-X² 48: 4 in x 8 out

Network remote control

• Built-in Ethernet switch: IEEE 802.3 10Base-T/100Base-TX

• Connectors: 3 x Neutrik EtherCon, Auto MDI-MDIX

• Protocol: Proprietary UDP/IP based, SNMP

RS-232

• Connector: D-sub 9-pin female

Mains

• Connector: Neutrik PowerCon

• Voltage: Auto-detect 100-240 Vac (+/- 10 %) – 50-60 Hz

• Power consumption: Intelli-X² 26 < 60 VA

• Intelli-X² 48 < 60 VA

Input channels functions

• Gain: -80 to +15dB, 0,1dB steps

• Polarity: normal / inverted

• Delay:

• Duration: 0 to 1500ms, sample rate depend steps,

• Distance: 0 to 500m

• Temperature: -20 to 50°C, 0,1° steps

• Relative humidity: 0 to 100%, 1% steps

• GEQ: 30-band ISO centred, +/-15 dB, proportional-Q or constant-Q mode selectable

• PEQ:

• Bands 12

• Filter types: Bell-Symmetrical, Bell-Asymmetrical, Notch, Low-Shelving 6dB/oct, Low-Shelving 12dB/oct, High-Shelving 6dB/oct , High-Shelving 12dB/oct, All-Pass 90°, All-Pass 180°, High-Pass 6dB/oct, High-Pass 12dB/oct, High-Pass Vari-Q 12dB/oct, Low-Pass 6dB/oct, Low-Pass 12dB/oct, Low-Pass Vari-Q

• 12dB/oct, Band-Pass

• Frequency: 10Hz to 22kHz, 0,1Hz steps

• Gain: -40 to +15dB, 0,1dB steps (when applicable)

• Q: 0,1 to 48, 0,01dB steps (when applicable)

• Compressor:

• Threshold: -80 to 0dBfs, 0,1dB steps

• Ratio: 1:1 to 50:1, 1 steps

• Knee: hard or soft

• Attack time: 0,5 to 100ms, 0,1ms steps

• Release time: 5 to 5000ms, 0,1ms steps

• Side-chain mode: flat, high-pass or band-pass mode

• Make-up gain: -20 to +20dB, 0,1 steps

• Mix matrix functions

• Gain: -80 to +15dB, 0,1dB steps

• Routing: enabled/disabled

• Output channel functions

• Delay:

• Duration: 0 to 1500ms, sample rate depend steps,

• Distance: 0 to 500m

• Temperature: -20 to 50°C, 0,1° steps

• Relative humidity: 0 to 100%, 1% steps

• Driver alignment:

• Duration: 0 to 30ms, sample rate depend steps,

• Distance: 0 to 10000cm, 0,1cm steps

• Temperature: -20 to 50°C, 0,1° steps

• Relative humidity: 0 to 100%, 1% steps

PEQ:

• Bands 12

• Filter types: Bell-Symmetrical, Bell-Asymmetrical, Notch, Low-Shelving 6dB/oct, Low-Shelving 12dB/oct, High-Shelving 6dB/oct , High-Shelving 12dB/oct, All-Pass 90°, All-Pass 180°, High-Pass 6dB/oct, High-Pass 12dB/oct, High-Pass Vari-Q 12dB/oct, Low-Pass 6dB/oct, Low-Pass 12dB/oct, Low-Pass Vari-Q 12dB/oct, Band-Pass

• Frequency: 10Hz to 22kHz, 0,1Hz steps

• Gain: -40 to +15dB, 0,1dB steps (when applicable)

• Q: 0,1 to 48, 0,01dB steps (when applicable)

High-pass and low-pass crossover:

• Filter types: Butterworth 6 to 48dB/octave, 6dB steps

• Linkwitz-Riley 12 to 48dB/octave, 12dB steps

• Bessel 12 to 48dB/octave, 6dB steps

• Frequency: 10Hz to 20kHz, 0,1Hz steps

• FIR filters:

• At 48 kHz: 5 x 1024 taps or 8 x 512 taps

• At 96 kHz: 3 x 1024 taps or 8 x 512 taps

• Gain: -80 to +15 dB, 0,1 dB steps

• Polarity: normal / inverted

• Limiter:

• Type: Dual-stage, RMS + Peak limiter

• RMS threshold: -80 to 0 dBfs (or dBu equivalent), 0,1 dB steps

• Peak threshold: -80 to 0 dBfs (or dBu equivalent), 0,1 dB steps

• RMS attack: 0,5 to 100 ms, 0,1 ms steps

• Peak attack: 0ms

• Release: 5 to 10000 ms, 0,1 ms steps

Mechanical specifications

Dimensions

Width: 483 mm (19-inch)

Height: 43,6 mm (1,75-inch – 1U)

Depth: 286 mm

Package

Width: 575 mm

Height: 110 mm

Depth: 355 mm

Weight

Unit (Nett): Intelli-X² 26 3,75 kg

Intelli-X² 48 3,75 kg

Package (Shipping):

Intelli-X² 26 5,5 kg

Intelli-X² 48 5,5 kg
