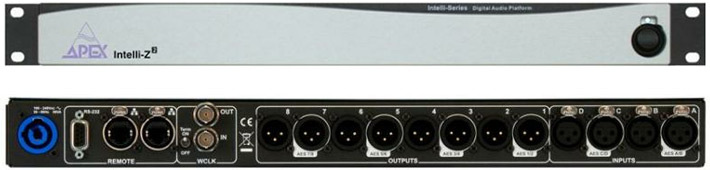

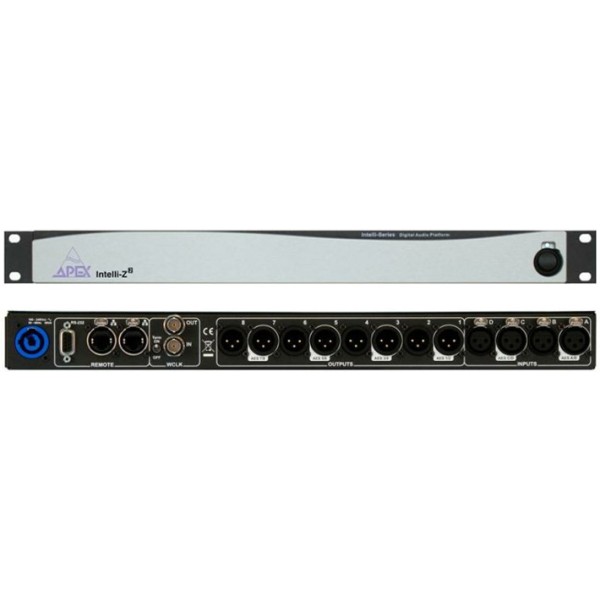

APEX – Intelli-Z²

Beschrijving

voor veel audiosystemen die zijn geïnstalleerd in vaste installaties (zoals theaters, conferentiecentra, enz.) is het normaal om het speaker managment systeem verborgen te houden en vaak onbereikbaar te maken in een versterkings- of controlekamer. Gebruik makend van de volledige kracht van de Apex Intelli-Ware afstandsbedieningssoftwareapplicatie met geïntegreerde analyzer-bridge, is de nieuwe Intelli-Z2 systeembeheerprocessor speciaal ontworpen voor dergelijke installaties.

Balanced Line Level Inputs
Connectors: 3-Pin XLR (Software Switch-Able Between Analog And AES-3)
Type: Electronically Balanced
Impedance: >10k Ohms, Balanced
Common Mode Rejection: >90dB
Max Input Level: 18, 21, 24 Or 27 DBu Software Selectable, Balanced, 1% THD+N
Frequency Response: 20 Hz – 20 KHz, ±0.5 DB
THD+N: Less Than 0,005%, +4 DBu, 20Hz- 20 KHz, 22 KHz BW
Dynamic Range: 120 DB, 20 Hz To 20kHz, Un-Weighted At +21dBu Headroom Settings
Crosstalk: >90 DB
AD Conversion: 24-Bit, Sigma-Delta
Balanced Line Level Outputs
Connector: 3-Pin XLR (Software Switch-Able Between Analog And AES-3)
Type: Electronically Balanced
Impedance: <50 Ohms, Balanced
Max Output Level: 15, 18, 21, 24 DBu Software Selectable, Into 600 Ohms, Balanced, 1%
THD+N
Frequency Response: 20 Hz – 20 KHz, ±0.5 DB
THD+N: Less Than 0,005%, +4 DBu, 20Hz- 20 KHz, 22 KHz BW
Dynamic Range: 120 DB, 20 Hz To 20kHz, Un-Weighted At +21dBu Headroom Settings
Crosstalk: >90 DB
DA Conversion Resolution: 24-Bit
AES-3 Inputs
Connector: 3-Pin XLR (Software Switch-Able Between Analog And AES-3)
Type: Transformer Isolated
Impedance: 110 Ohms Or 75 Ohms Selectable (Internal Jumper), Balanced
Supported Formats: AES-3 And SPDIF Up To 24-Bit
Supported Sample Rates: 32 To 192 KHz
AES-3 Outputs
Connector: 3-Pin XLR (Software Switch-Able Between Analog And AES-3)
Type: Transformer Isolated
Impedance: 110 Ohms Or 75 Ohms Selectable (Internal Jumper), Balanced
Word-Clock Input
Connector: BNC
Termination: 75 Ohms Switch-Able
Input Level: 1 To 10 Vpp
Word Clock Output
Connector: BNC
Impedance: 75 Ohms
Output Level: TTL 5 Vpp
Digital Processing
Sample Rate: 44,1kHz, 48kHz, 88,2kHz, 96kHz, 176,4kHz Or 192kHz Selectable
Internal Processing: 32-Bit Floating Point
Input / Output Channel:
Intelli-Z²: 4 In X 8 Out
Network Remote Control
Built-In Ethernet Switch: IEEE 802.3 10Base-T/100Base-TX
Connectors: 3 X Neutrik EtherCon, Auto MDI-MDIX
Protocol: Proprietary UDP/IP Based, SNMP
RS-232
Connector: D-Sub 9-Pin Female
Mains
Connector: Neutrik PowerCon
Voltage: Auto-Detect 100-240 Vac (+/- 10 %) – 50-60 Hz
Power Consumption: Intelli-Z² < 60 VA
Input Channels Functions
Gain: -80 To +15dB, 0,1dB Steps
Polarity: Normal / Inverted
Delay:
Duration: 0 To 1500ms, Sample Rate Depend Steps,
Distance: 0 To 500m
Temperature: -20 To 50°C, 0,1° Steps
Relative Humidity: 0 To 100%, 1% Steps
GEQ: 30-Band ISO Centred, +/-15 DB, Proportional-Q Or Constant-Q Mode
Selectable
PEQ:
Bands 12
Filter Types: Bell-Symmetrical, Bell-Asymmetrical, Notch, Low-Shelving 6dB/Oct, Low-
Shelving 12dB/Oct, High-Shelving 6dB/Oct , High-Shelving 12dB/Oct, All-
Pass 90°, All-Pass 180°, High-Pass 6dB/Oct, High-Pass 12dB/Oct, High-Pass
Vari-Q 12dB/Oct, Low-Pass 6dB/Oct, Low-Pass 12dB/Oct, Low-Pass Vari-Q
12dB/Oct, Band-Pass
Frequency: 10Hz To 22kHz, 0,1Hz Steps
Gain: -40 To +15dB, 0,1dB Steps (When Applicable)
Q: 0,1 To 48, 0,01dB Steps (When Applicable)
Compressor:
Threshold: -80 To 0dBfs, 0,1dB Steps
Ratio: 1:1 To 50:1, 1 Steps
Knee: Hard Or Soft
Attack Time: 0,5 To 100ms, 0,1ms Steps
Release Time: 5 To 5000ms, 0,1ms Steps
Side-Chain Mode: Flat, High-Pass Or Band-Pass Mode
Make-Up Gain: -20 To +20dB, 0,1 Steps
Mix Matrix Functions
Gain: -80 To +15dB, 0,1dB Steps
Routing: Enabled/Disabled
Output Channel Functions
Delay:
Duration: 0 To 1500ms, Sample Rate Depend Steps,
Distance: 0 To 500m
Temperature: -20 To 50°C, 0,1° Steps
Relative Humidity: 0 To 100%, 1% Steps
Driver Alignment:
Duration: 0 To 30ms, Sample Rate Depend Steps,
Distance: 0 To 10000cm, 0,1cm Steps
Temperature: -20 To 50°C, 0,1° Steps
Relative Humidity: 0 To 100%, 1% Steps
PEQ:
Bands 12
Filter Types: Bell-Symmetrical, Bell-Asymmetrical, Notch, Low-Shelving 6dB/Oct, Low-
Shelving 12dB/Oct, High-Shelving 6dB/Oct , High-Shelving 12dB/Oct, All-
Pass 90°, All-Pass 180°, High-Pass 6dB/Oct, High-Pass 12dB/Oct, High-Pass
Vari-Q 12dB/Oct, Low-Pass 6dB/Oct, Low-Pass 12dB/Oct, Low-Pass Vari-Q
12dB/Oct, Band-Pass
Frequency: 10Hz To 22kHz, 0,1Hz Steps
Gain: -40 To +15dB, 0,1dB Steps (When Applicable)
Q: 0,1 To 48, 0,01dB Steps (When Applicable)
High-Pass And Low-Pass Crossover:
Filter Types: Butterworth 6 To 48dB/Octave, 6dB Steps
Linkwitz-Riley 12 To 48dB/Octave, 12dB Steps
Bessel 12 To 48dB/Octave, 6dB Steps
Frequency: 10Hz To 20kHz, 0,1Hz Steps
FIR Filters:
At 48 KHz: 5 X 1024 Taps Or 8 X 512 Taps
At 96 KHz: 3 X 1024 Taps Or 8 X 512 Taps
Gain: -80 To +15 DB, 0,1 DB Steps
Polarity: Normal / Inverted
Limiter:
Type: Dual-Stage, RMS + Peak Limiter
RMS Threshold: -80 To 0 DBfs (Or DBu Equivalent), 0,1 DB Steps
Peak Threshold: -80 To 0 DBfs (Or DBu Equivalent), 0,1 DB Steps
RMS Attack: 0,5 To 100 Ms, 0,1 Ms Steps
Peak Attack: 0ms
Release: 5 To 10000 Ms, 0,1 Ms Steps
Environment
Operating
Temperature: 0° To 50° C
Relative Humidity: 10 To 60 %, Non-Condensing
Storage
Temperature: -20° To 70° C
Mechanical Specifications
Dimensions
Unit
Width: 483 Mm (19-Inch)
Height: 43,6 Mm (1,75-Inch – 1U)
Depth: 286 Mm
Package
Width: 575 Mm
Height: 110 Mm
Depth: 355 Mm
Weight
Unit (Nett):
Intelli-Z² 3,75 Kg
Package (Shipping):
Intelli-Z² 5,5 Kg
