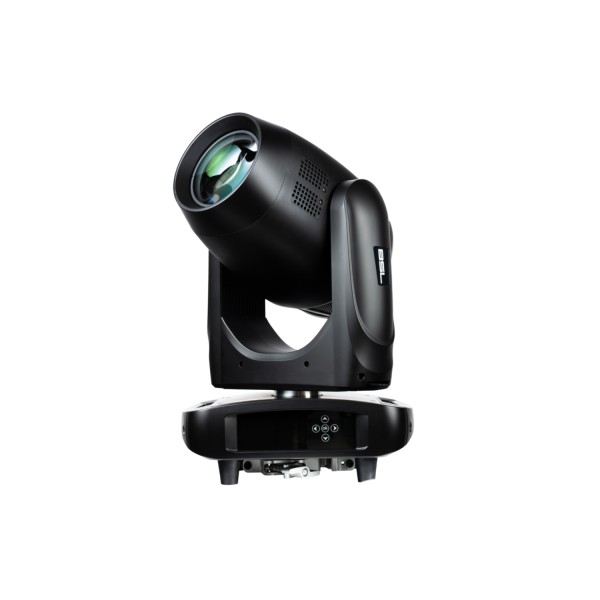

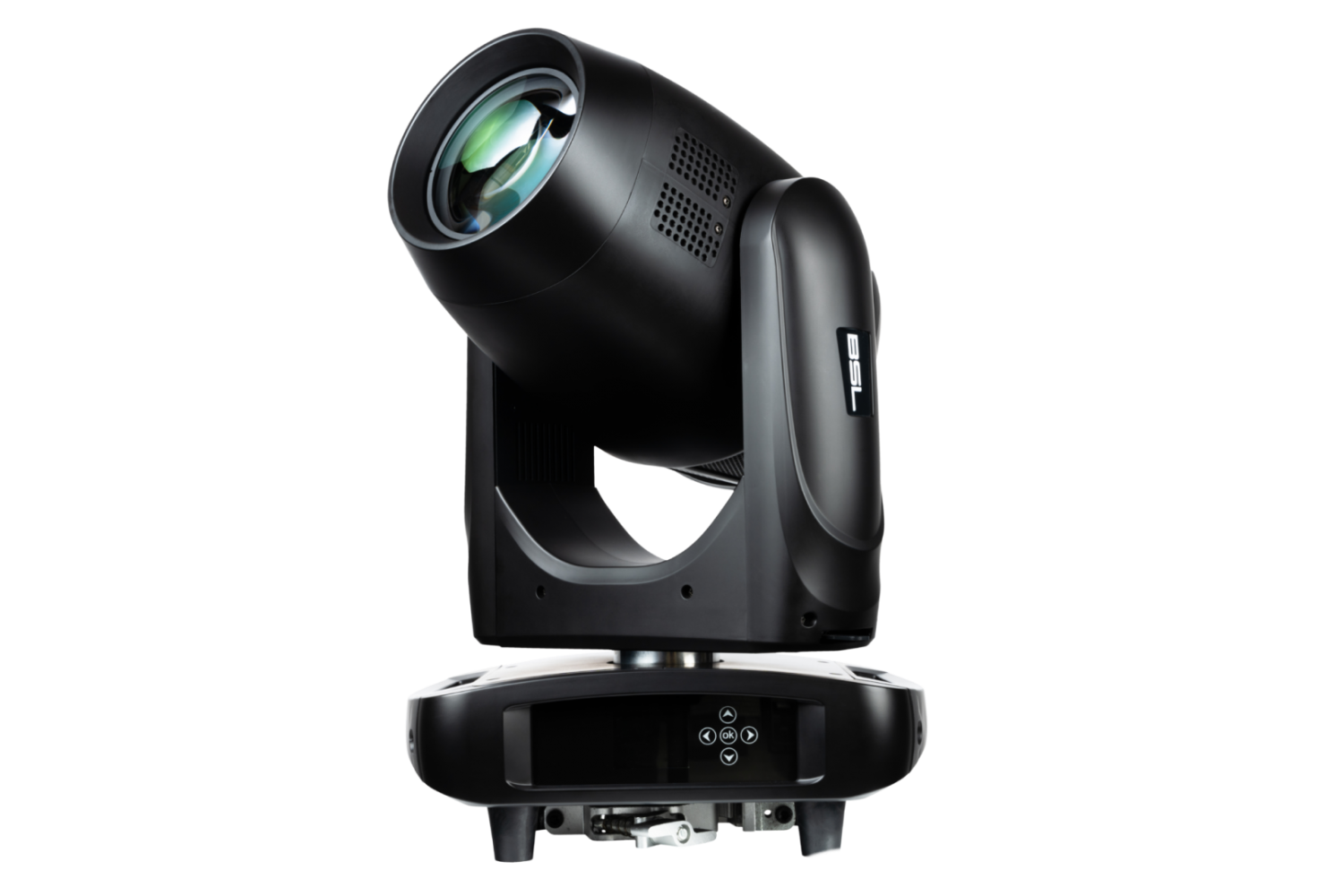

BSL – Hera

Beschrijving

Specifications:

 SOURCE

• Light Source: Philips MSD Platinum 300SFlex

• Lamp Life: 6.000 Hours

• Control Method: 23 (Lite)/28 (Standard) 2 Channel Control Modes

• Control: International Standard DMX512

• Beam Angle: Beam: 2°- 40°

COLORS

• CMY Color Mixing

• Color Temperature: 8000K±200K

• 3 Color Wheels, 12 Colors Total + Open

GOBO

• 1 Fixed Gobo Wheel: 10 Gobo’s + Open. Gobo Diameter: 6.5MM

• 1 Rotating Gobo Wheel: 7 Gobo’s + Open. Gobo Diameter: 12.5MM

POWER

• Input Voltage: 110V~240V AC, 50/60Hz

• Rated Power: 500W @ 230V

FEATURES

• CRI: 76

• Prism: 6- Facet Linear Prism and 8-Facet Prism, Bi-directional Rotation From Slow To Fast

• Frost: 1 Single-sided Hightransmission Lens

• Focus: Linear Focus Via DMX

• Strobe: 0-15 Times Per Second Highspeed Strobe

• Dimming: 0-100% Linear Dimming

• Pan: 540° Tilt: 270°. Auto Return Function

• Cooling system: 9 Cooling Fans. Auto & Silent Cooling Mode

• Zoom from 2° to 40°

• Housing: Aluminium, High Temperature/UV Resistant Engineering Plastic

• Indoor Use Only: IP20

DIMENSION AND WEIGHT

• Fixture: 363 x 241 x 597 MM

• Nett Weight: 25KG

Kijk voor productinformatie en downloads op www.bsl-lighting.com
