Beschrijving
Input channels 4
Output channels 8
Frequency response 20 Hz-20 KHz，-0.3 dBu
Signal to noise ratio >115 dBu
Distortion <0.005 at 1 KHz (0 dBu)
Crosstalk <100 dB below full scale
Maximum input level +18 dBu
Maximum output level +20 dBu
Input impedance Balanced 500 KΩ, Unbalanced <500 KΩ
Digital processing 24-bit sigma-delta，96 KHz sampling rate.

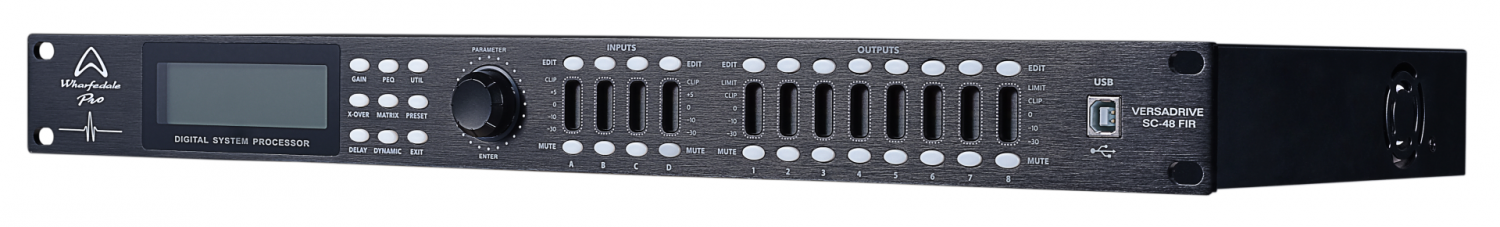

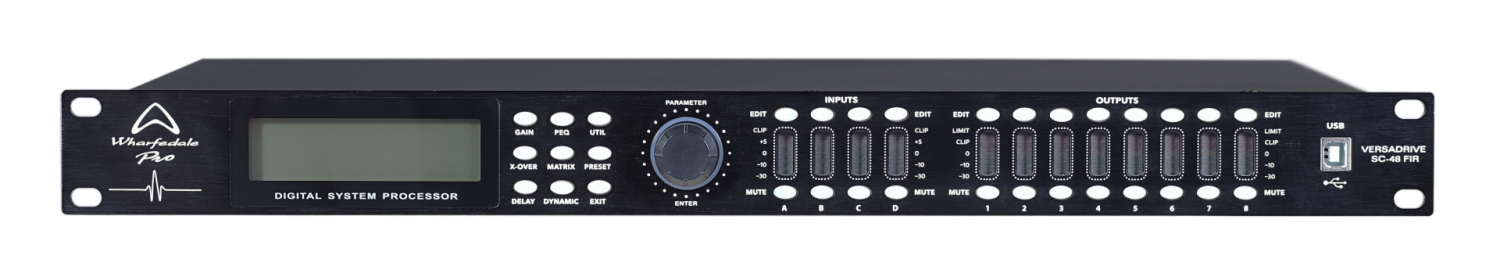

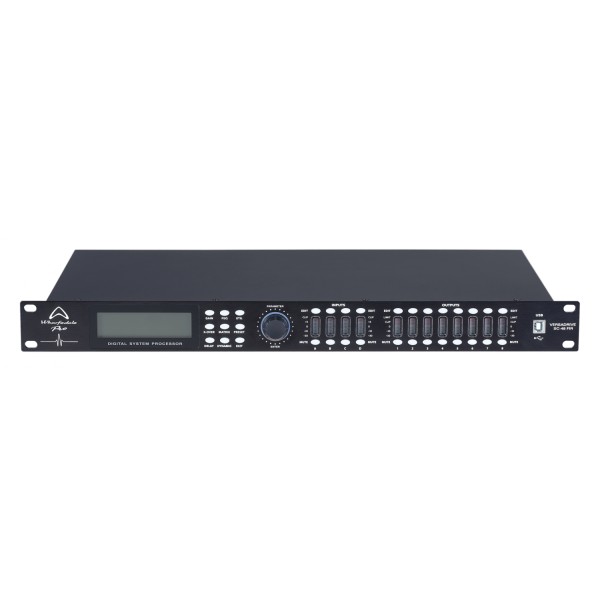

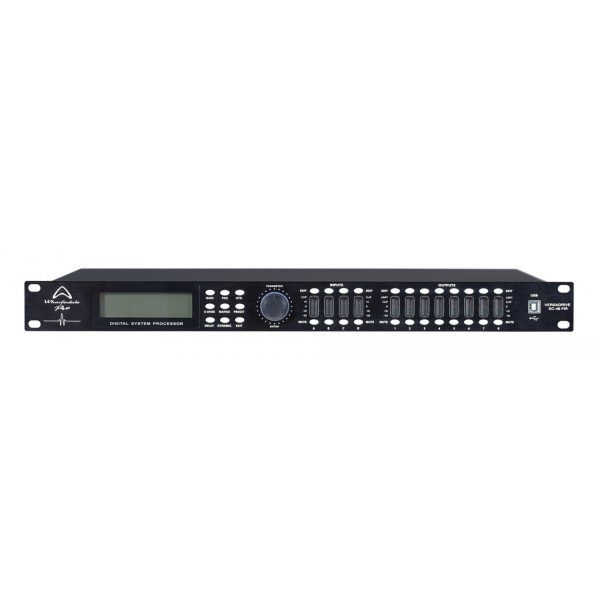

Display 20 × 2 LCD Display
AC Power AC 100-240 V
H x W x D 480 × 245 × 450 mm
Weight 2.88 kg
Complete digital sound processing solution
Internal DSP + FIR filtering
4 in / 8 out matrix
AES Digital input
Password protection for venue install
24-bit 96 KHz AD/DA convertors
RMS compressors AND Peak limiters on all outputs

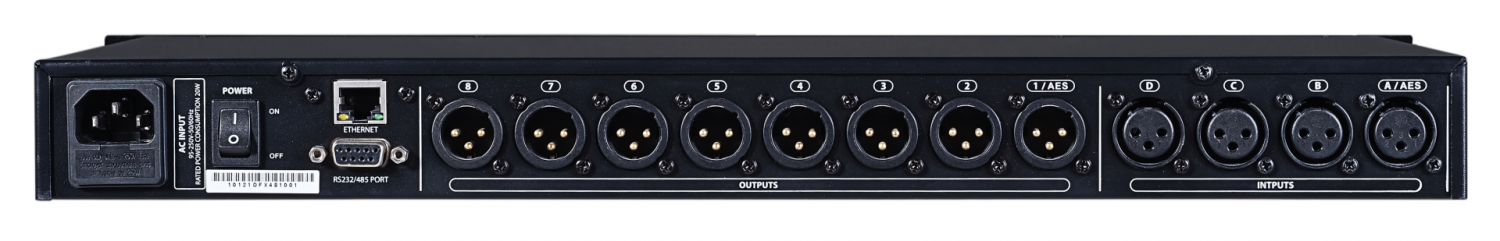

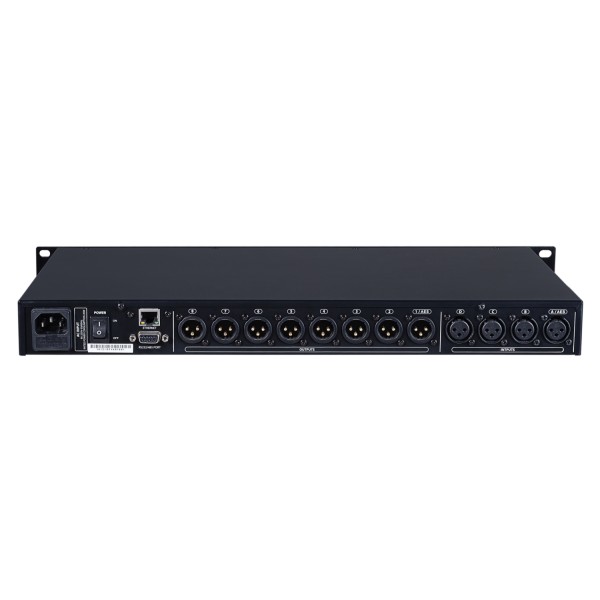

USB / RS232 / RS485 / RJ45 connectivity
User friendly software included
